Millennium Plant

Enclosable

Production rate: 250 YD³ Per Hour*

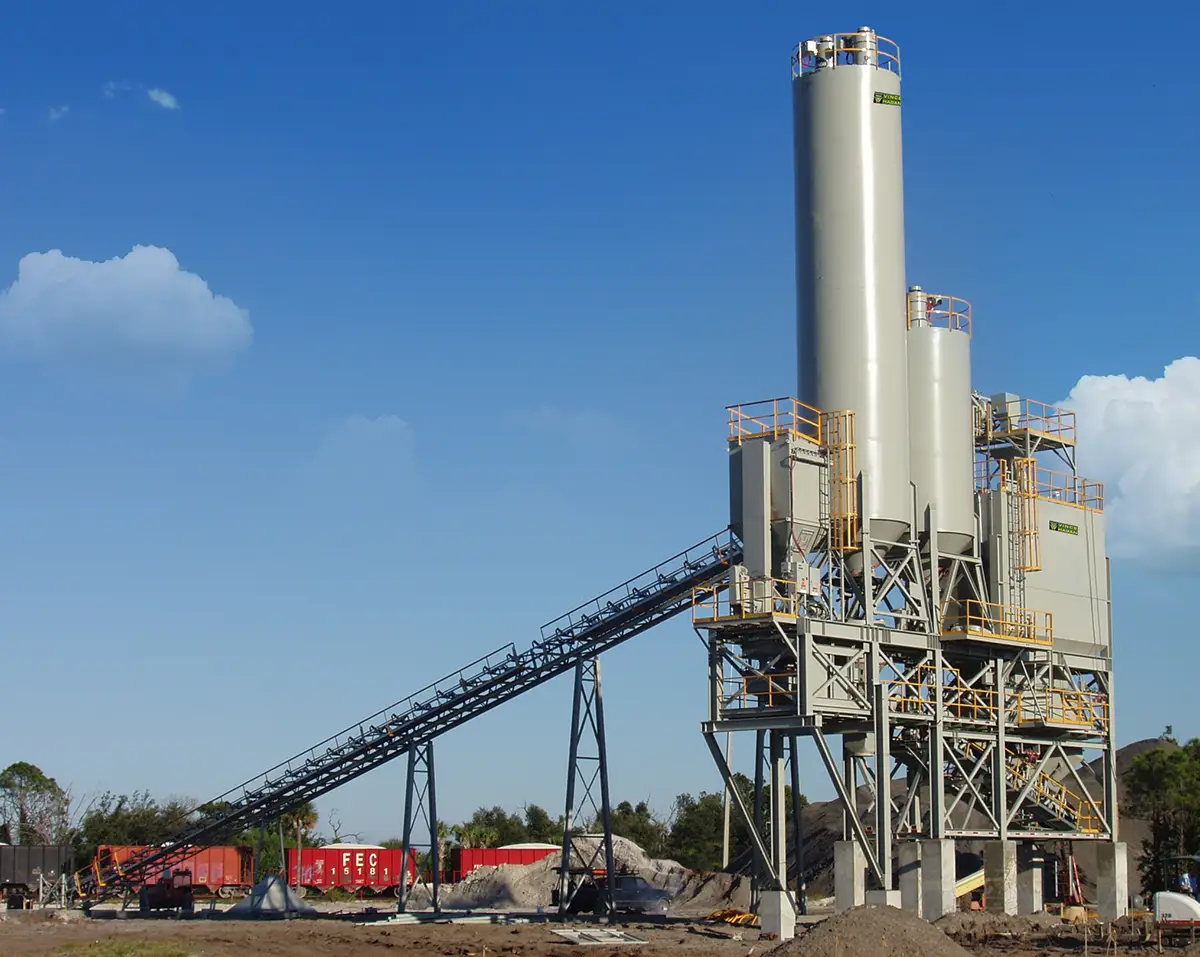

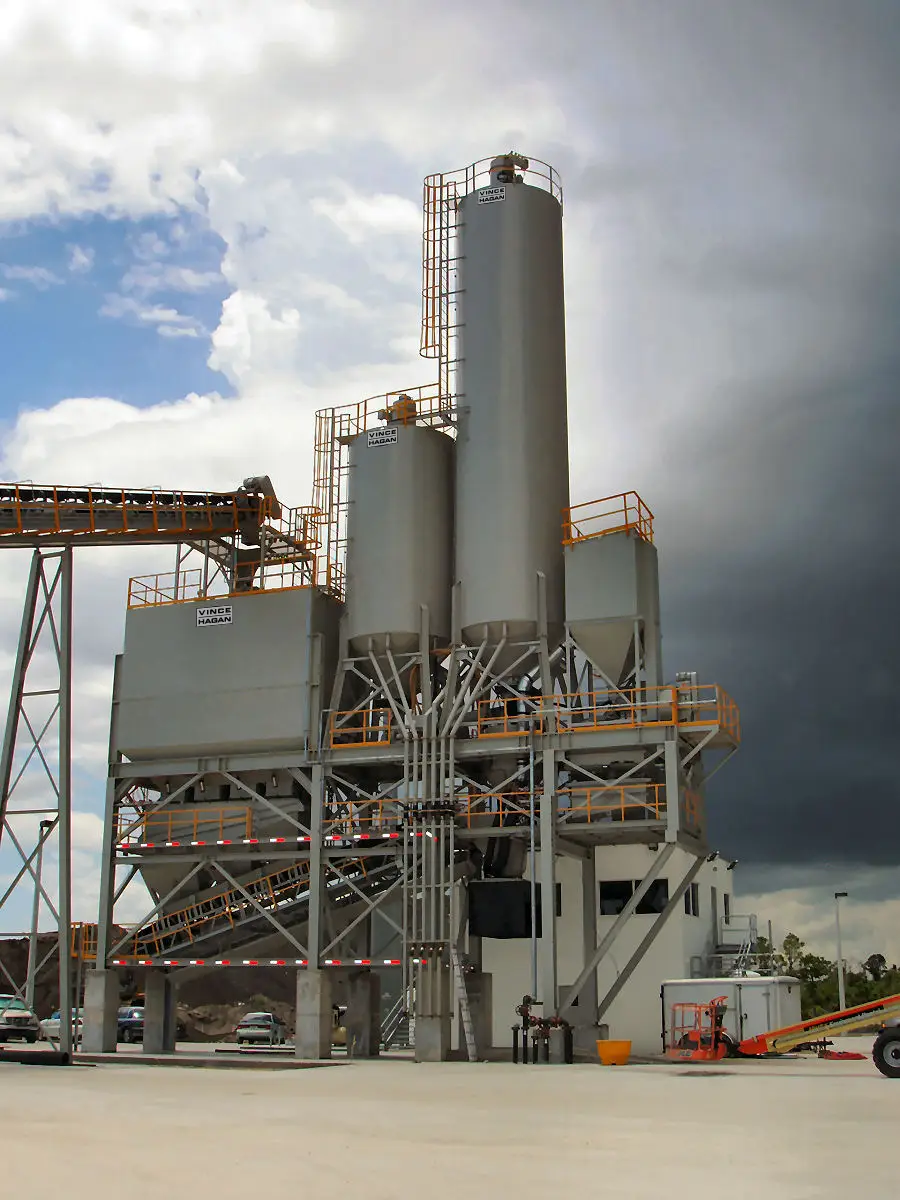

The Vince Hagan Millennium dry batch plant is designed for high-production, and can consistently load a truck in two minutes or less. The Millennium features a modular design that provides for ease of setup and built-in safety features. All components are accessible from safety platforms and walkways on every level of the plant.

If weather or visibility codes are a factor, you can enclose the bottom portion of this plant by adding panels to the frame of the structure.

Key Specs

  • 36″ high-speed batch belt with 40 hp drive

  • 45° troughing idlers & Oversized discharge hood for high speed feed of aggregate into a truck mixer

  • 200 ton – 4 compartment aggregate bin
    (350 ton option)

  • Twin 1200 bbl two compartment silo
    cement storage

  • 14 YD³ batcher
    700 FT³ aggregate weigh batcher
    140 FT³ cement weigh batcher

  • All components & ladders contained
    within structure

  • Elevated dust collector with direct
    cement scale discharge
