LPM Series

Production rate: 100-400 YD³ Per Hour*

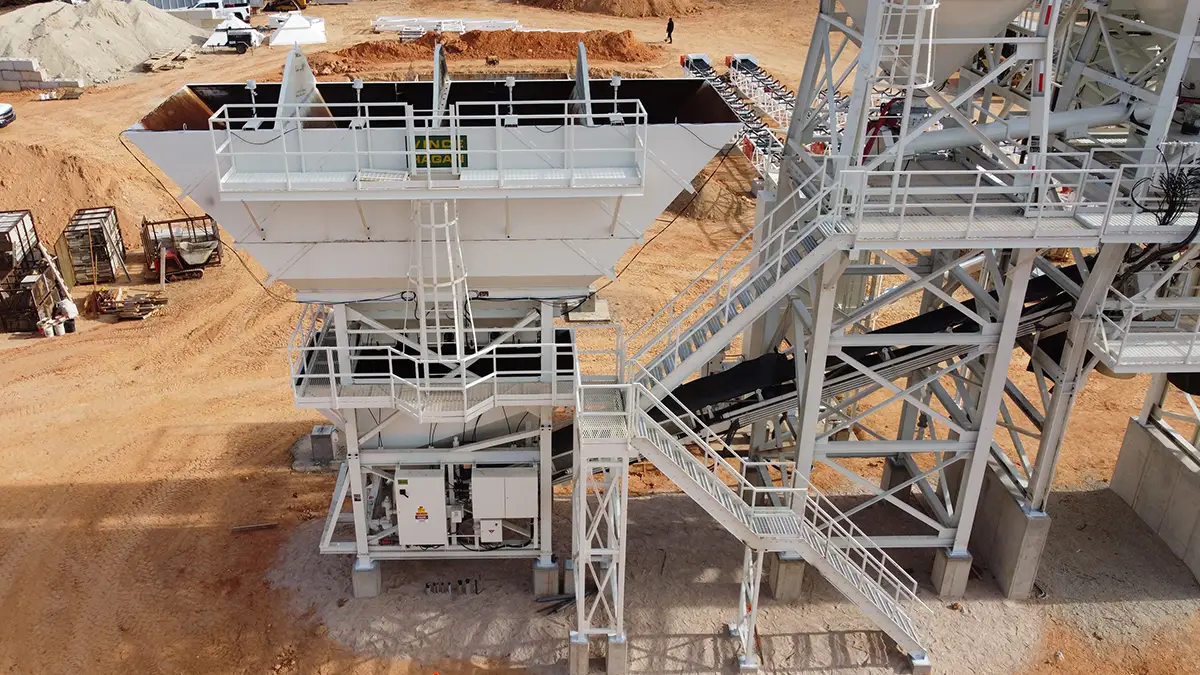

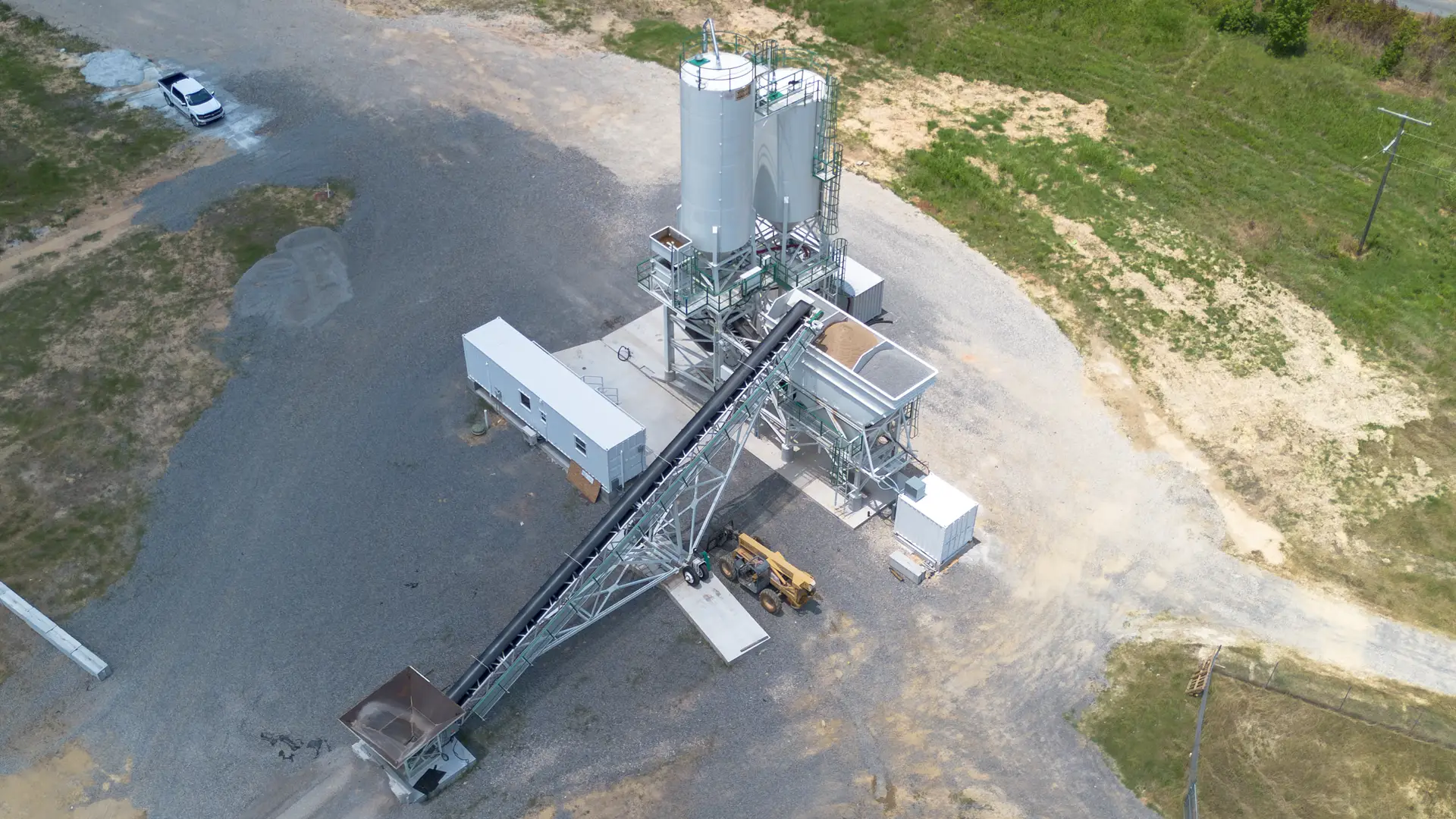

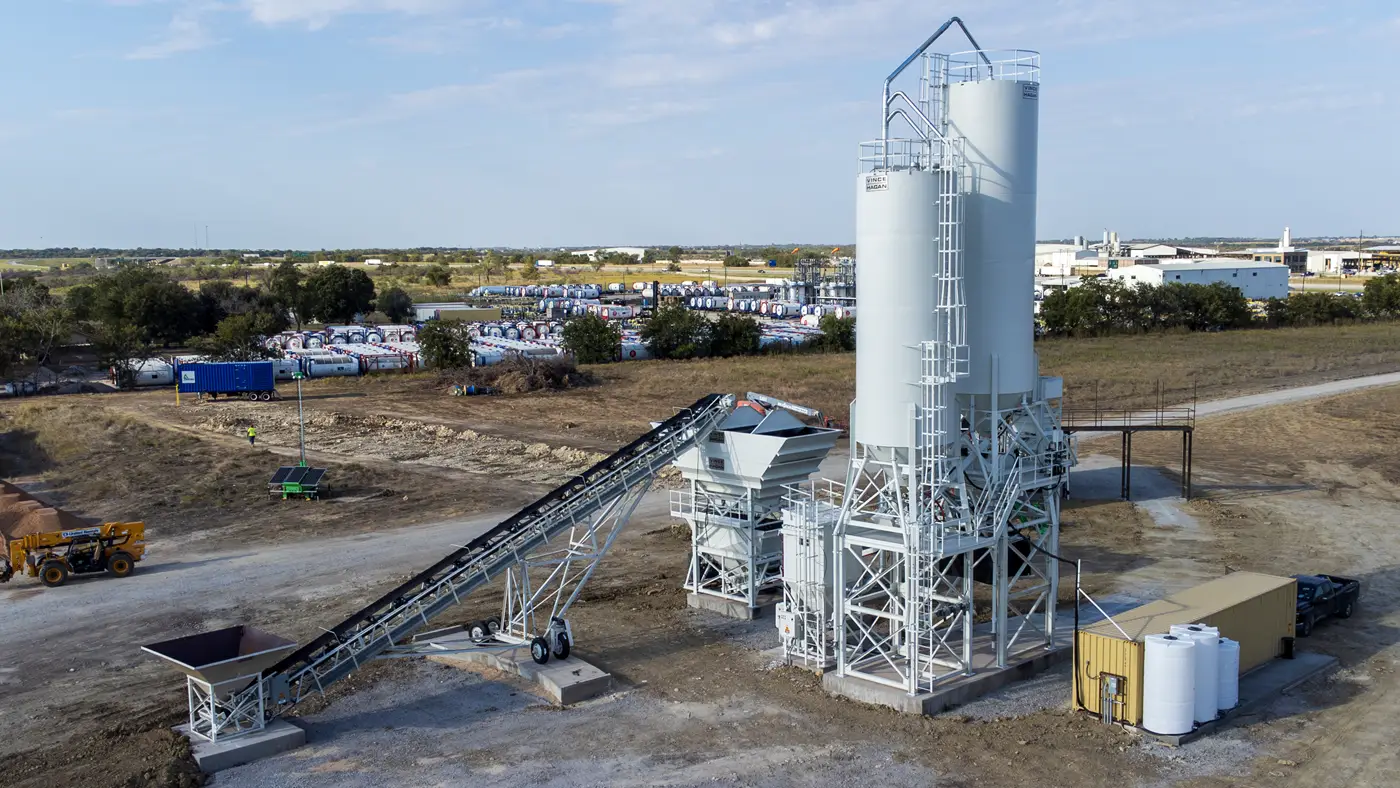

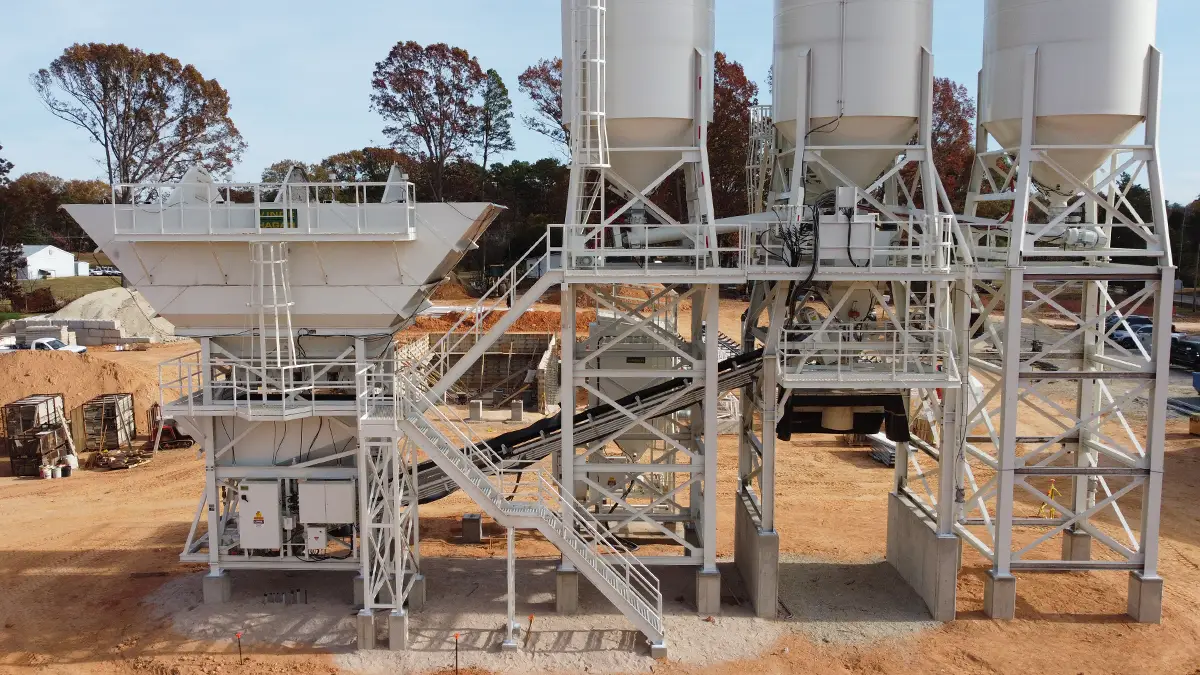

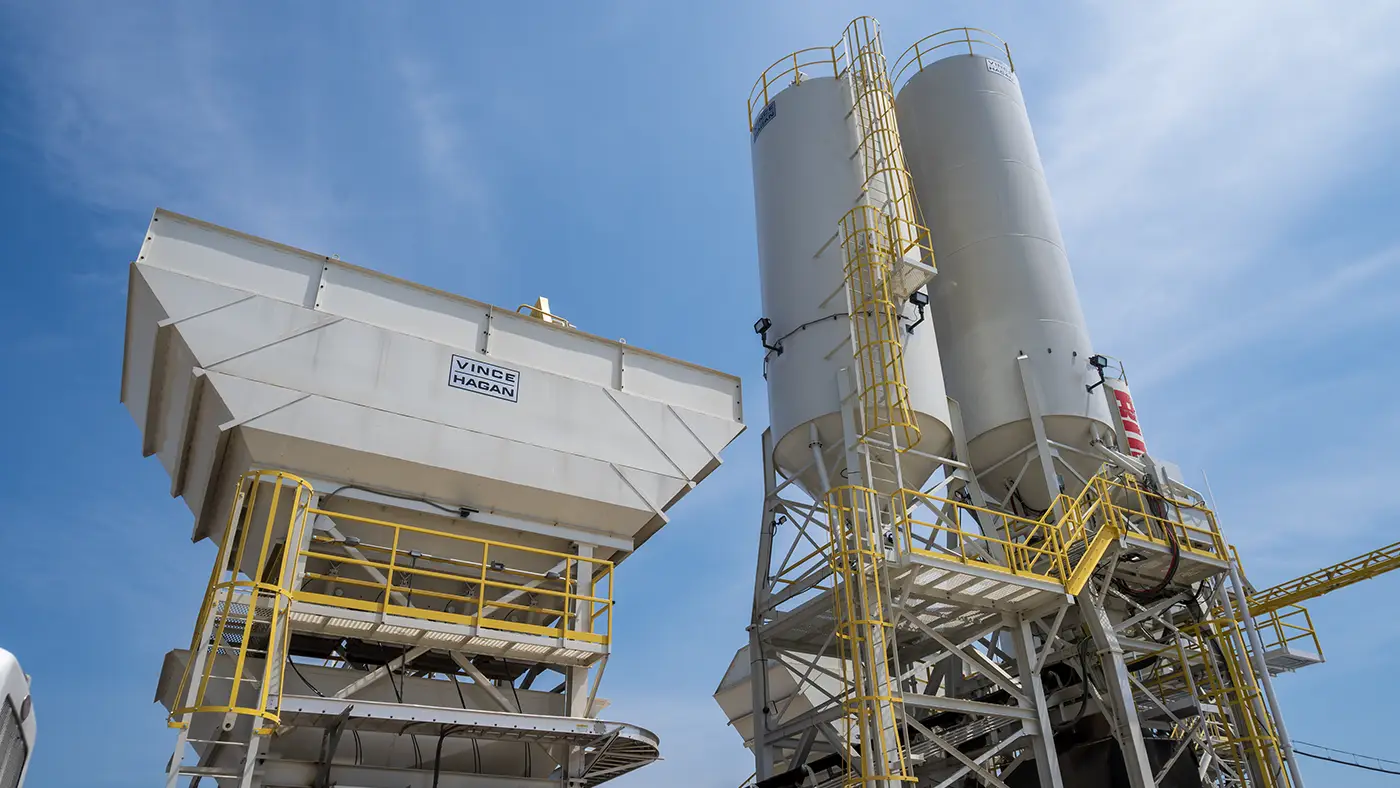

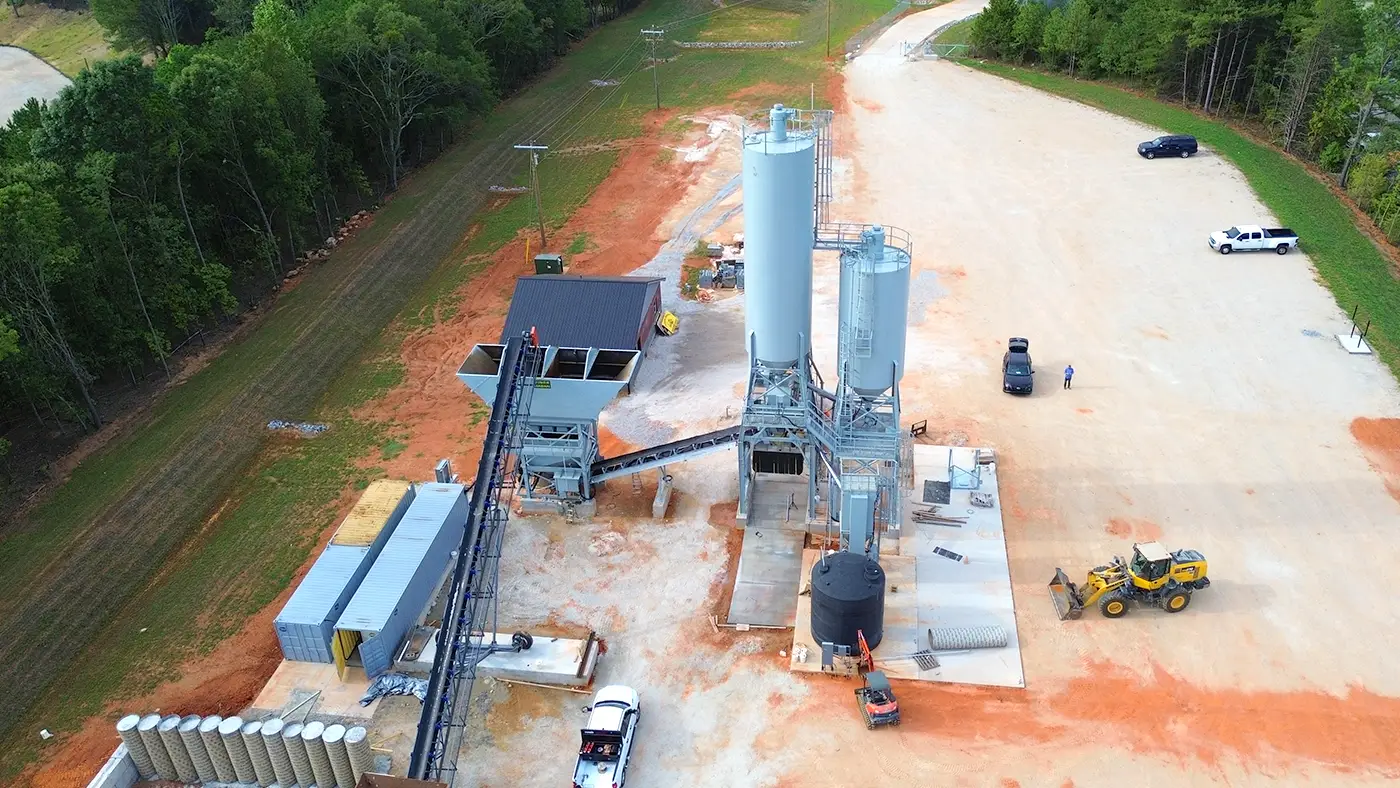

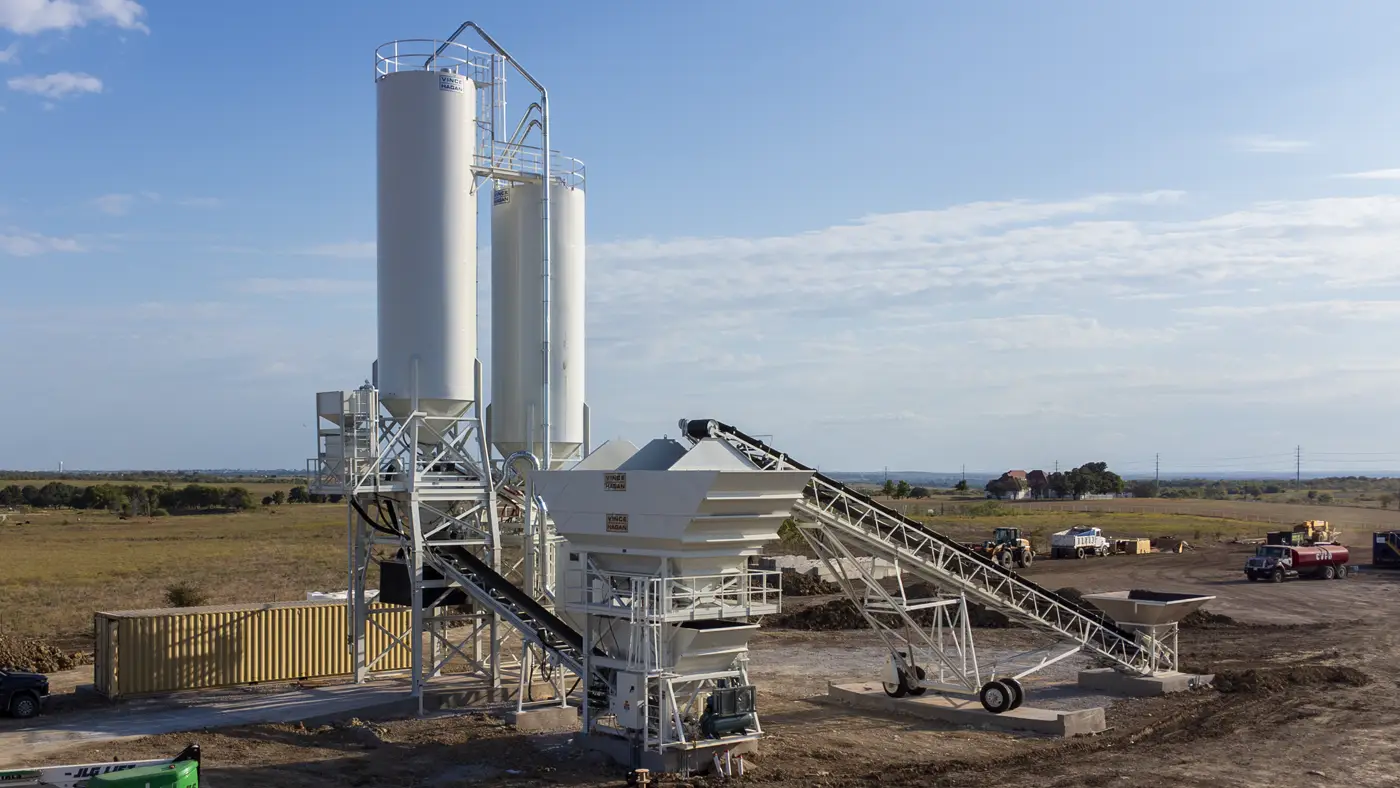

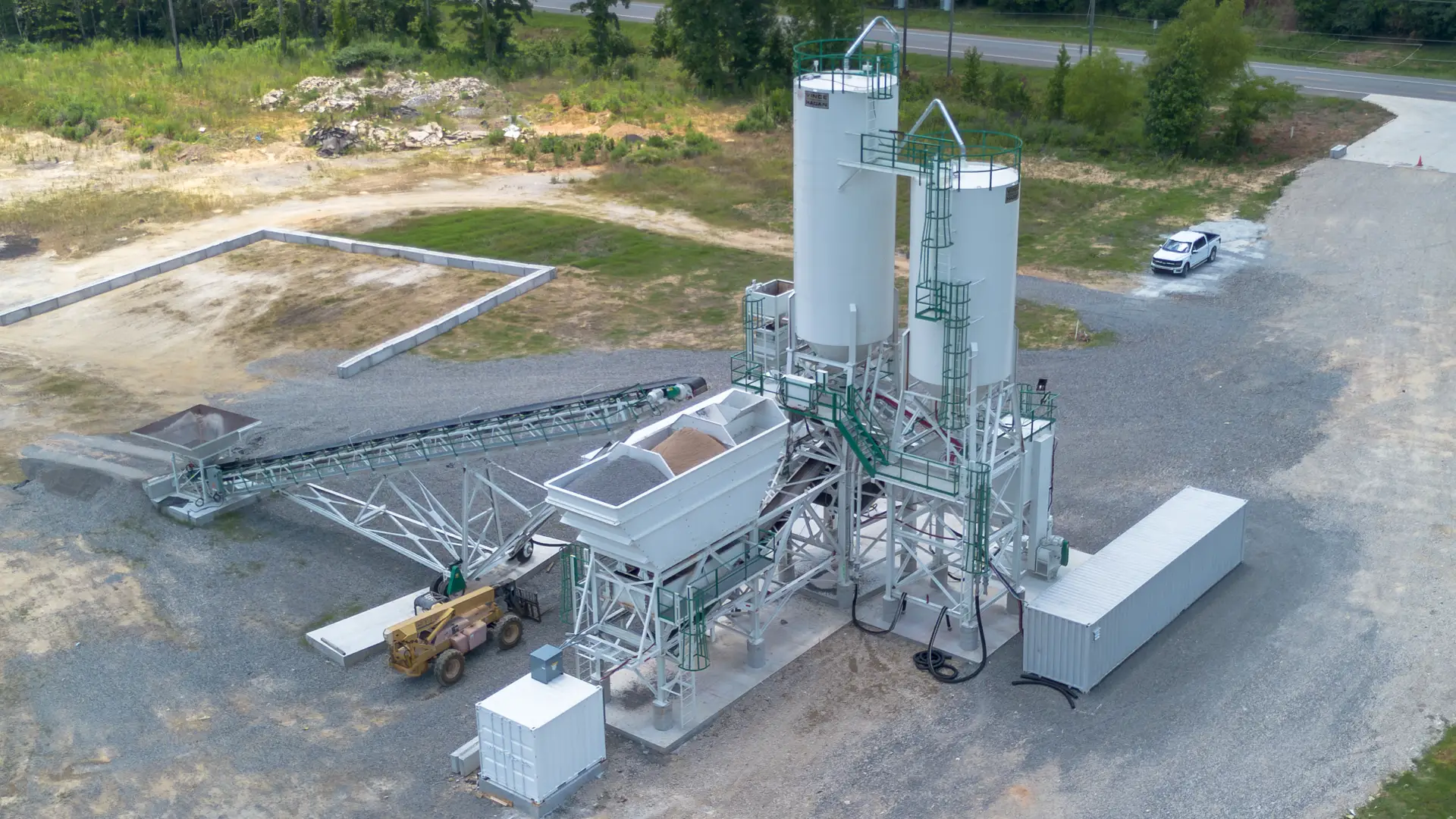

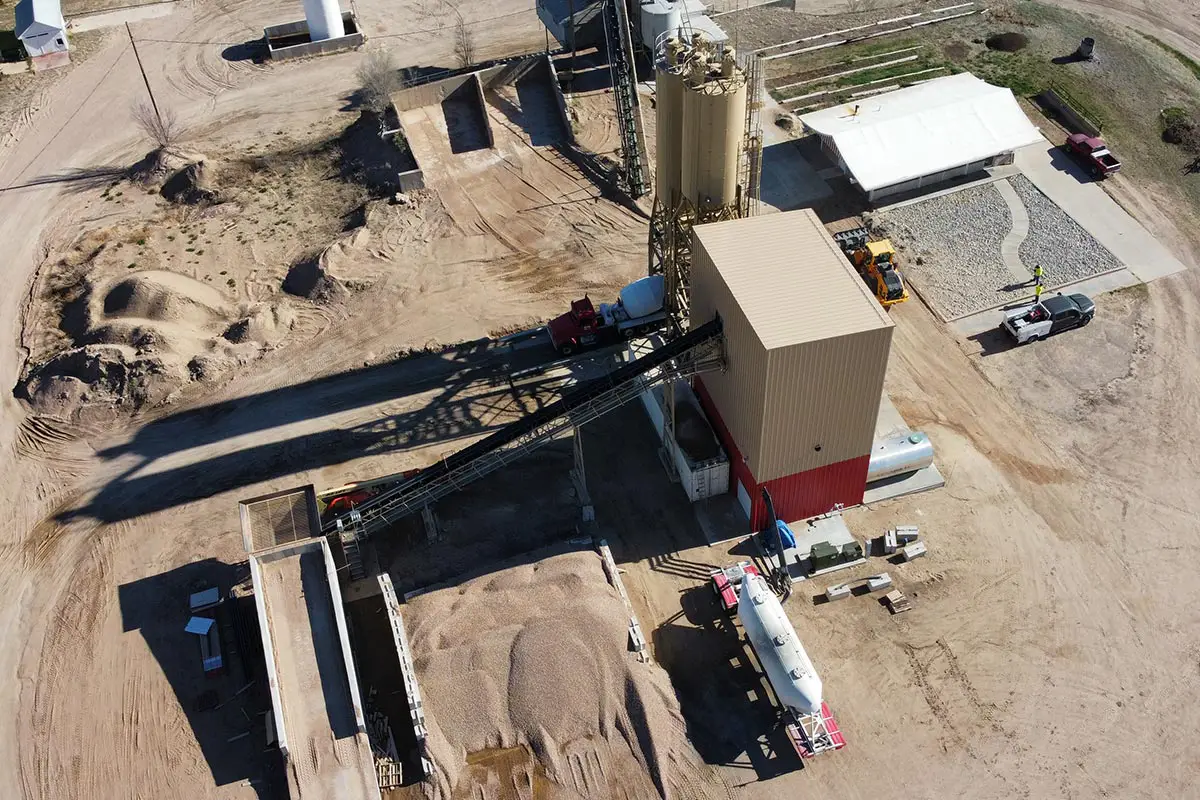

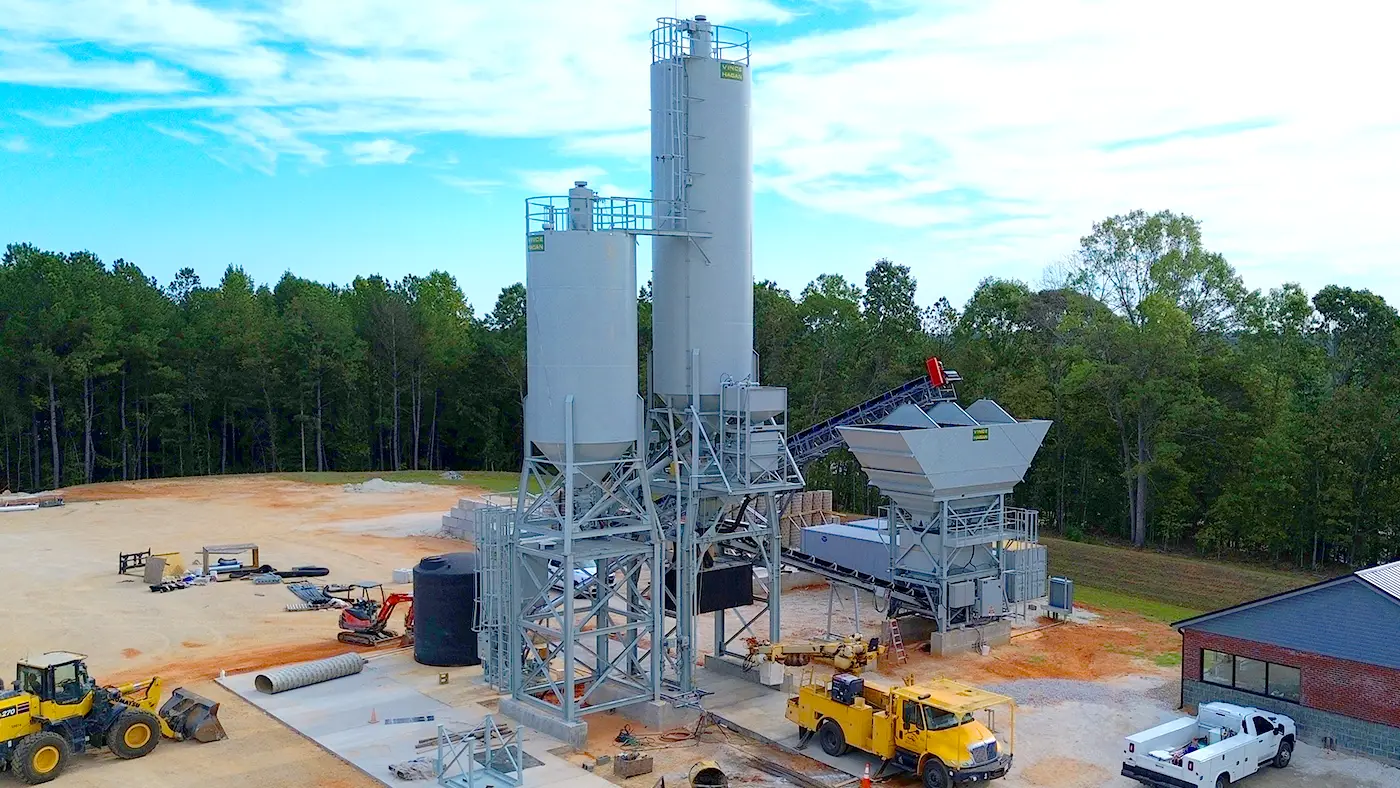

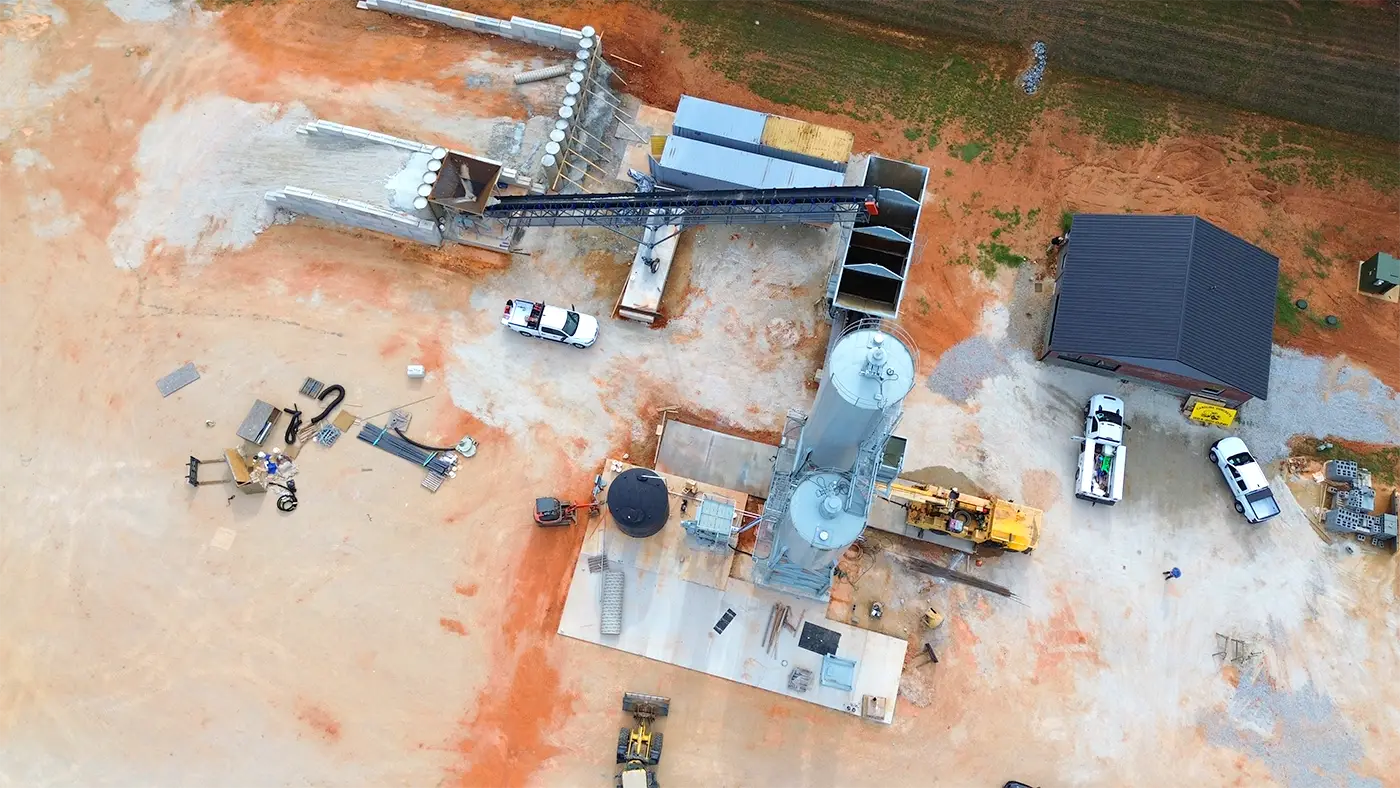

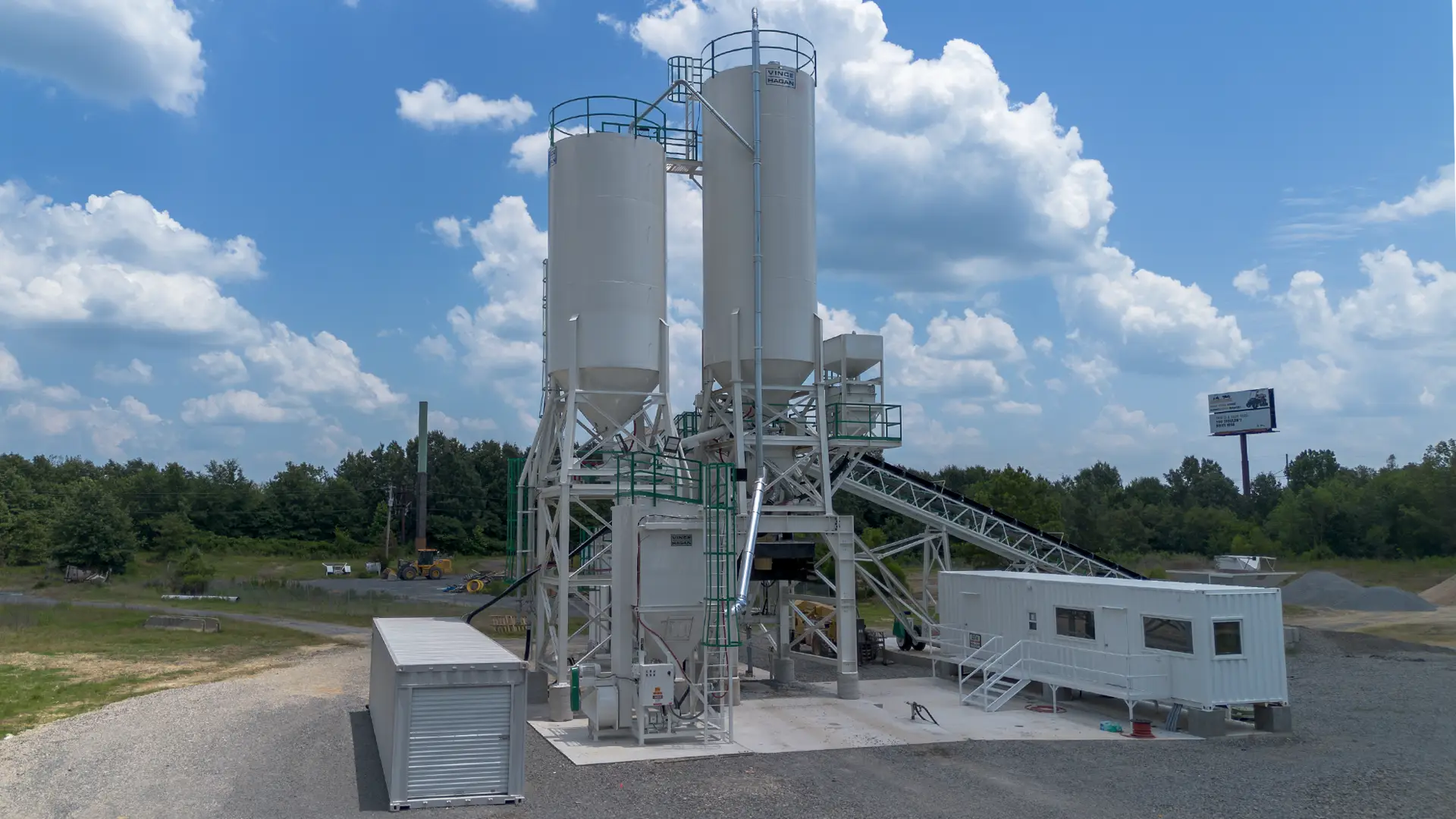

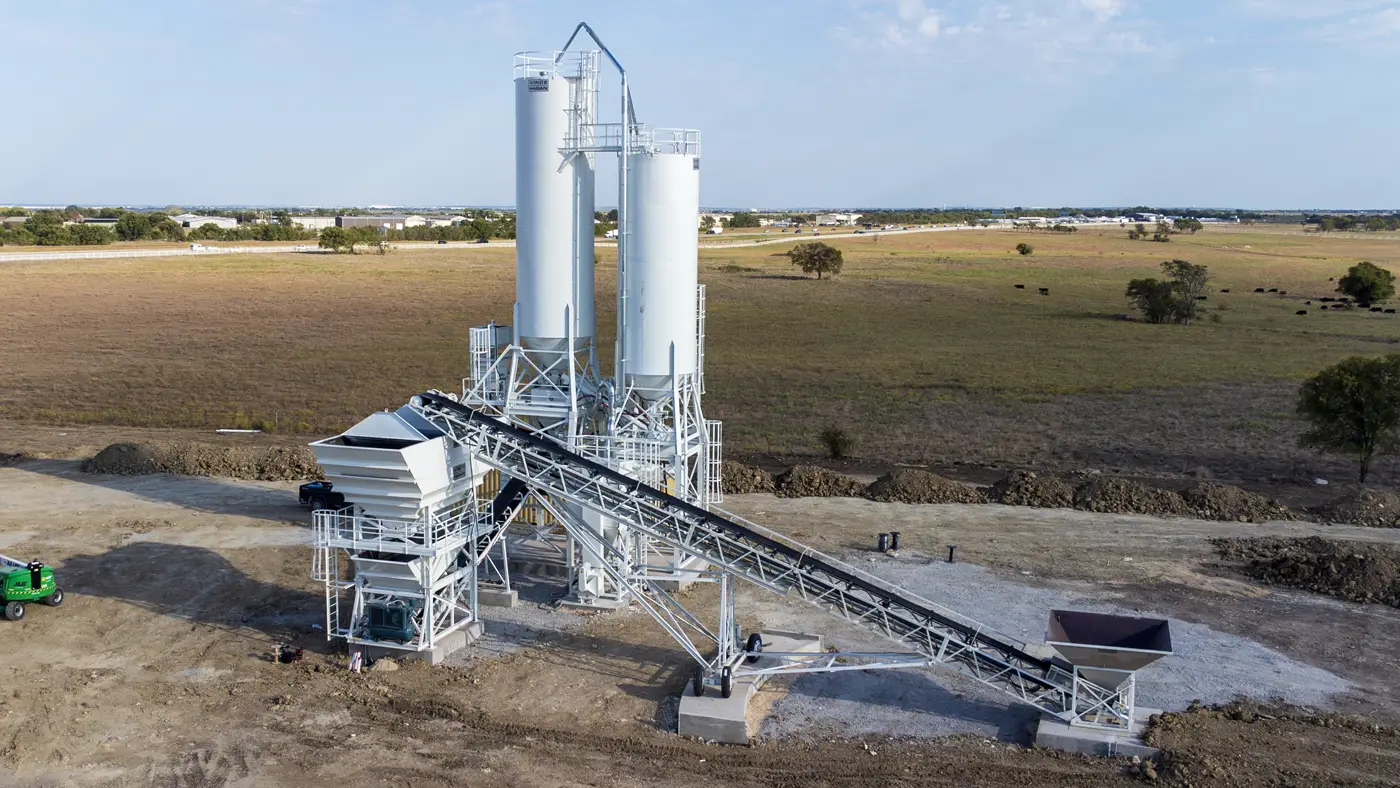

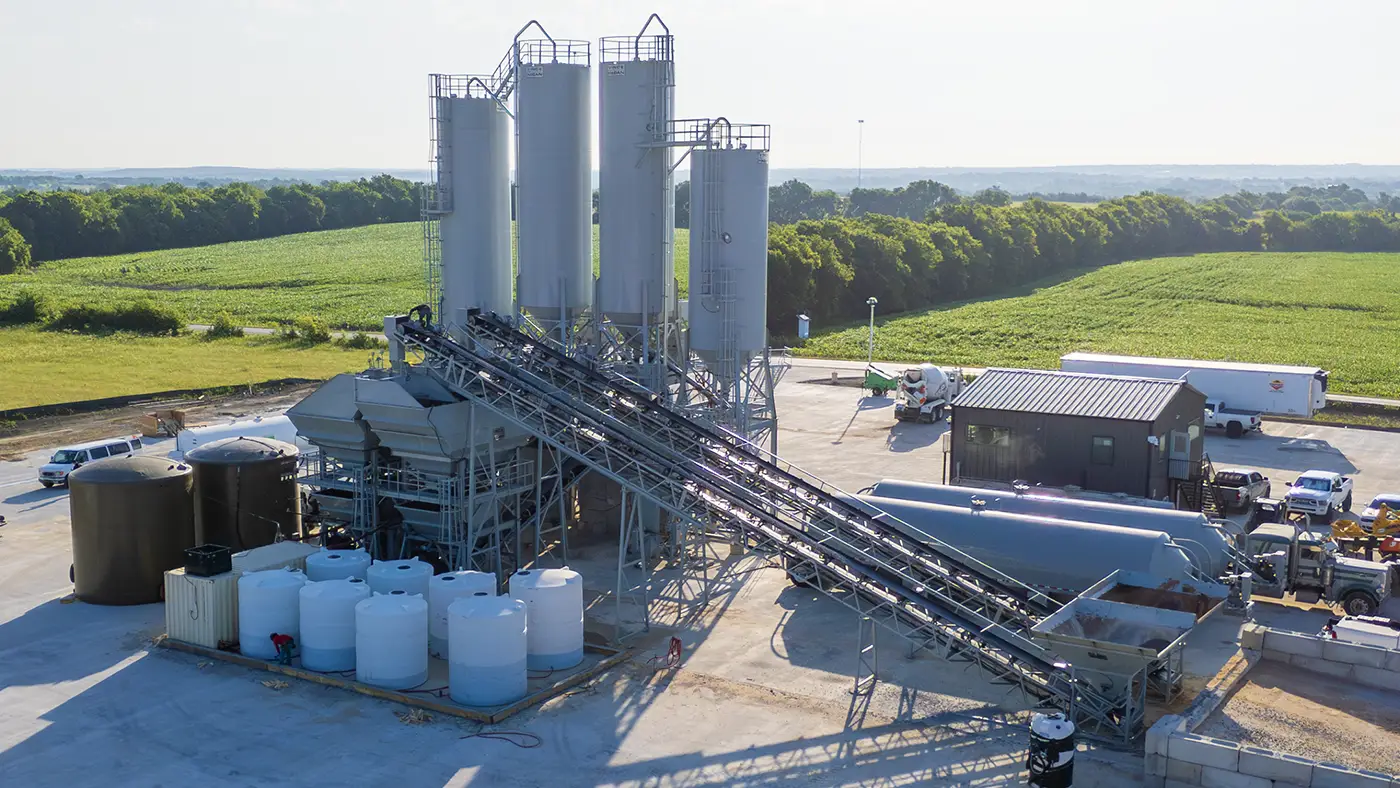

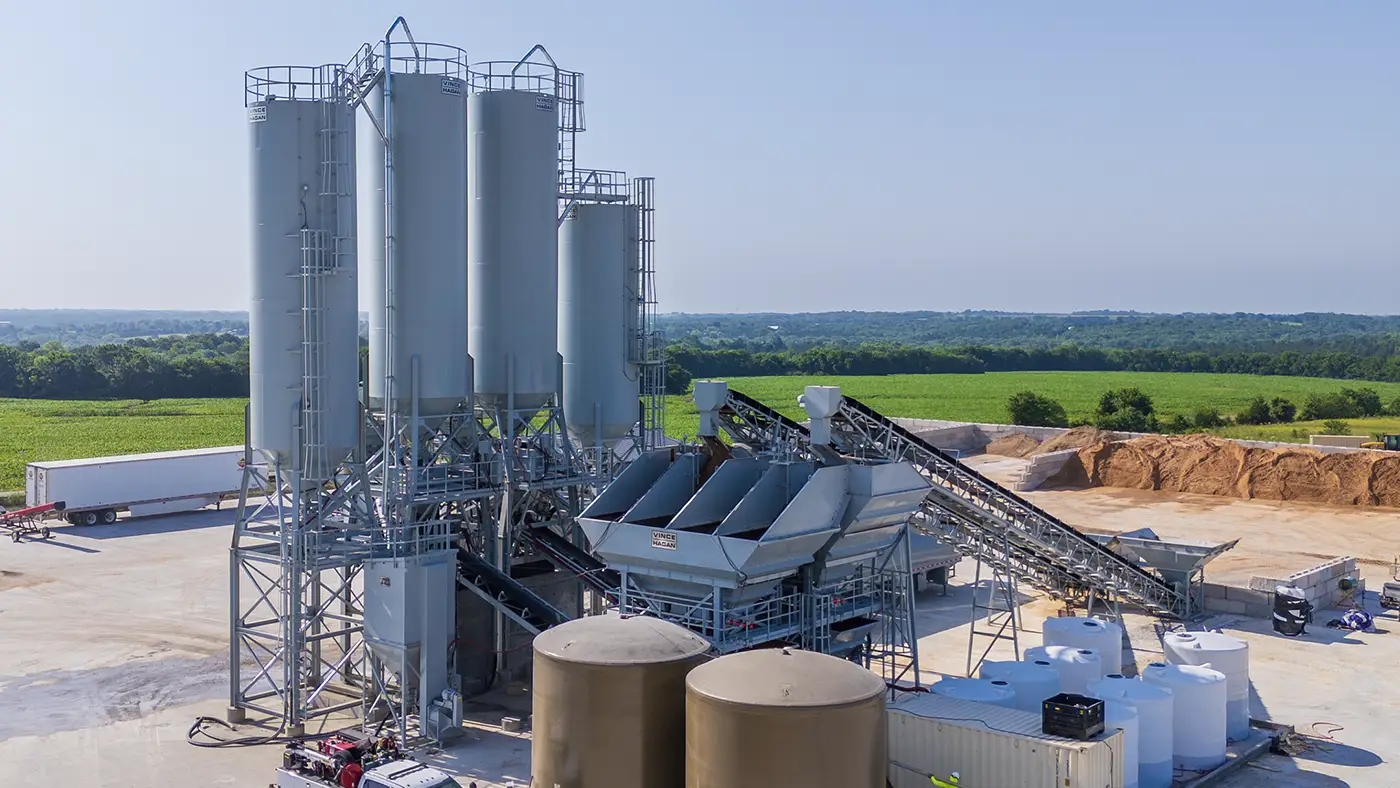

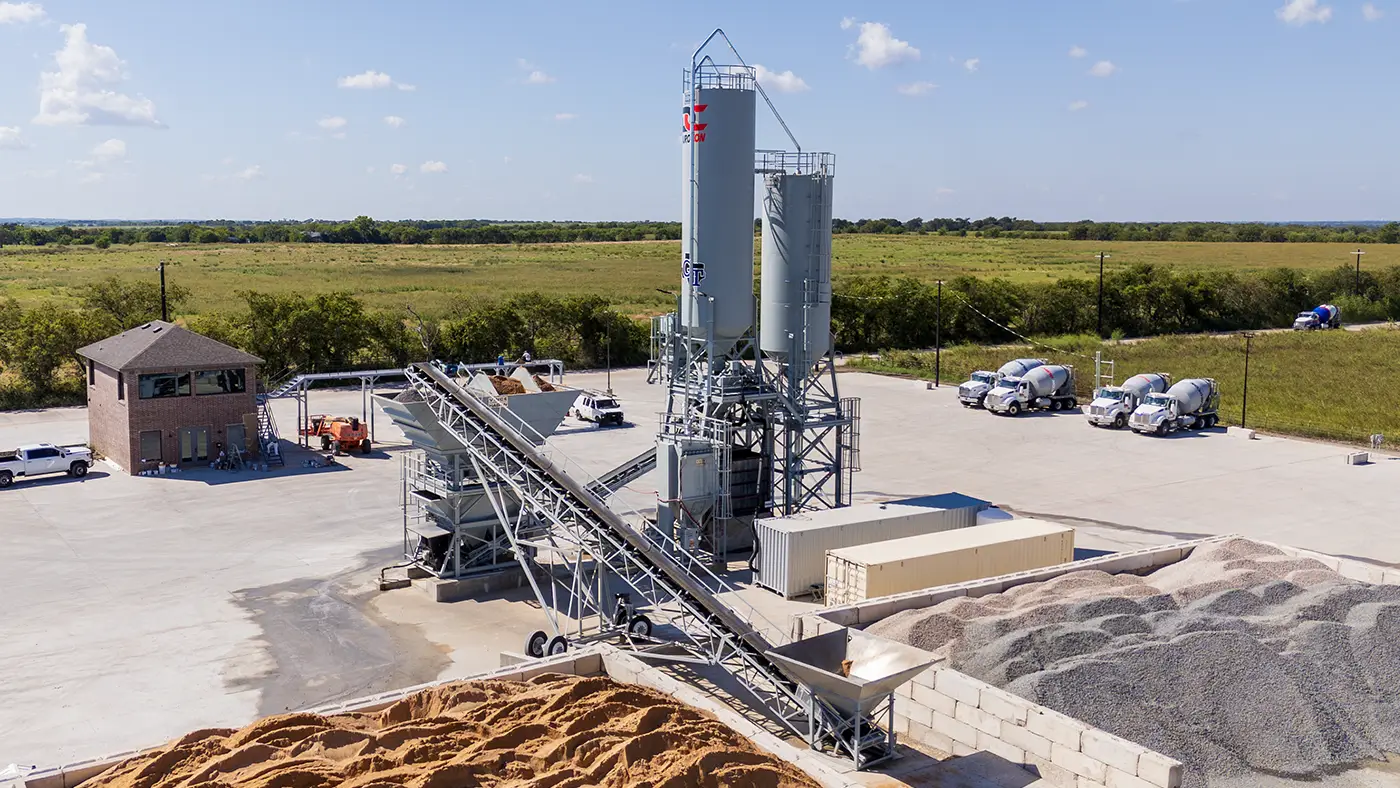

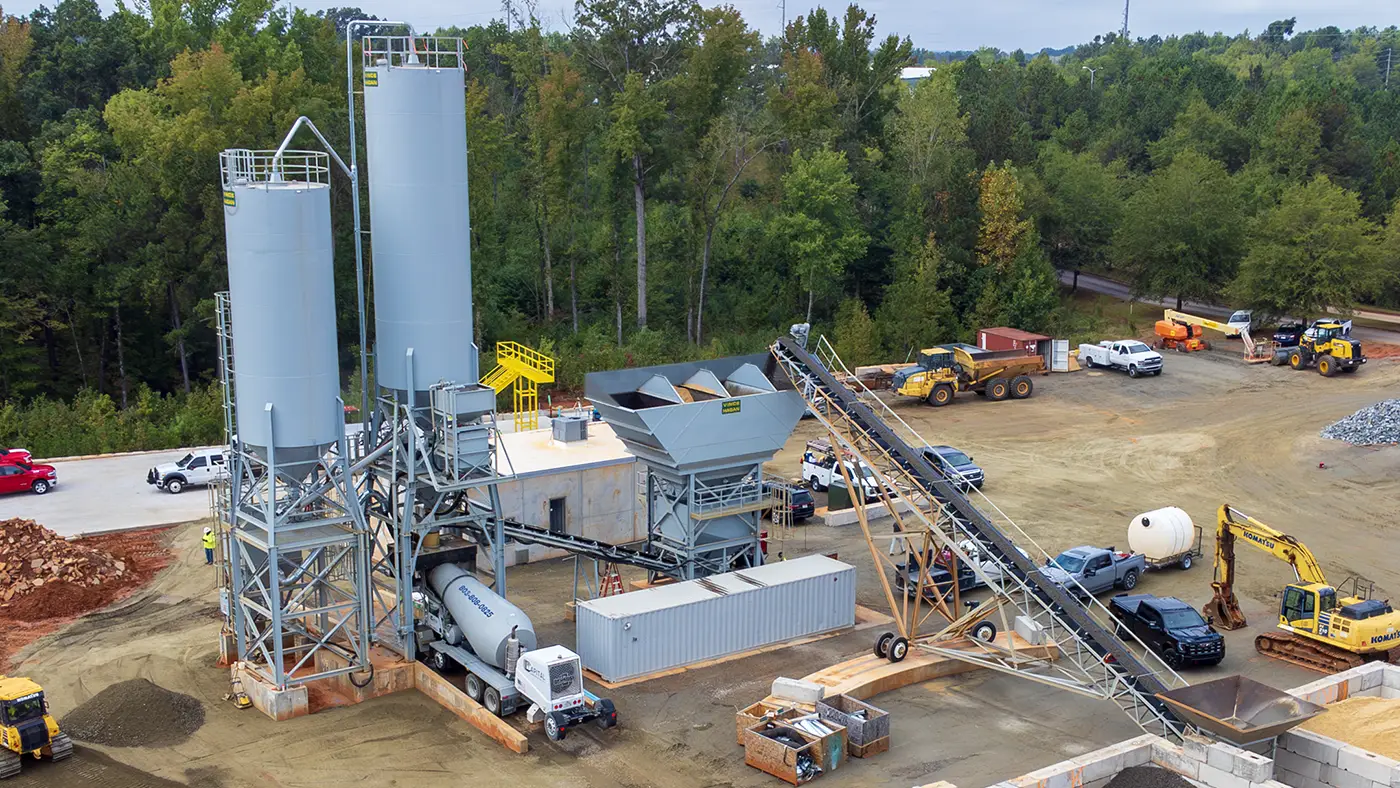

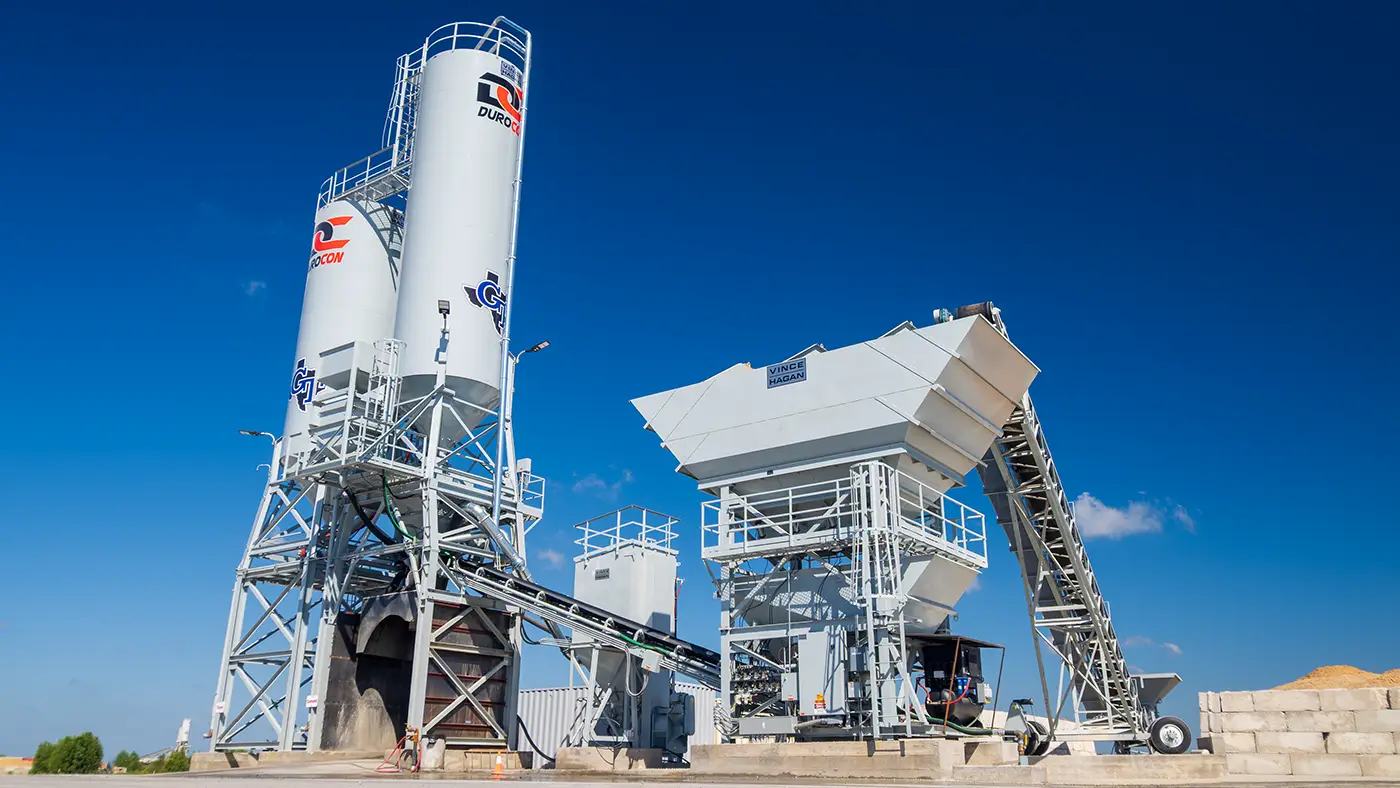

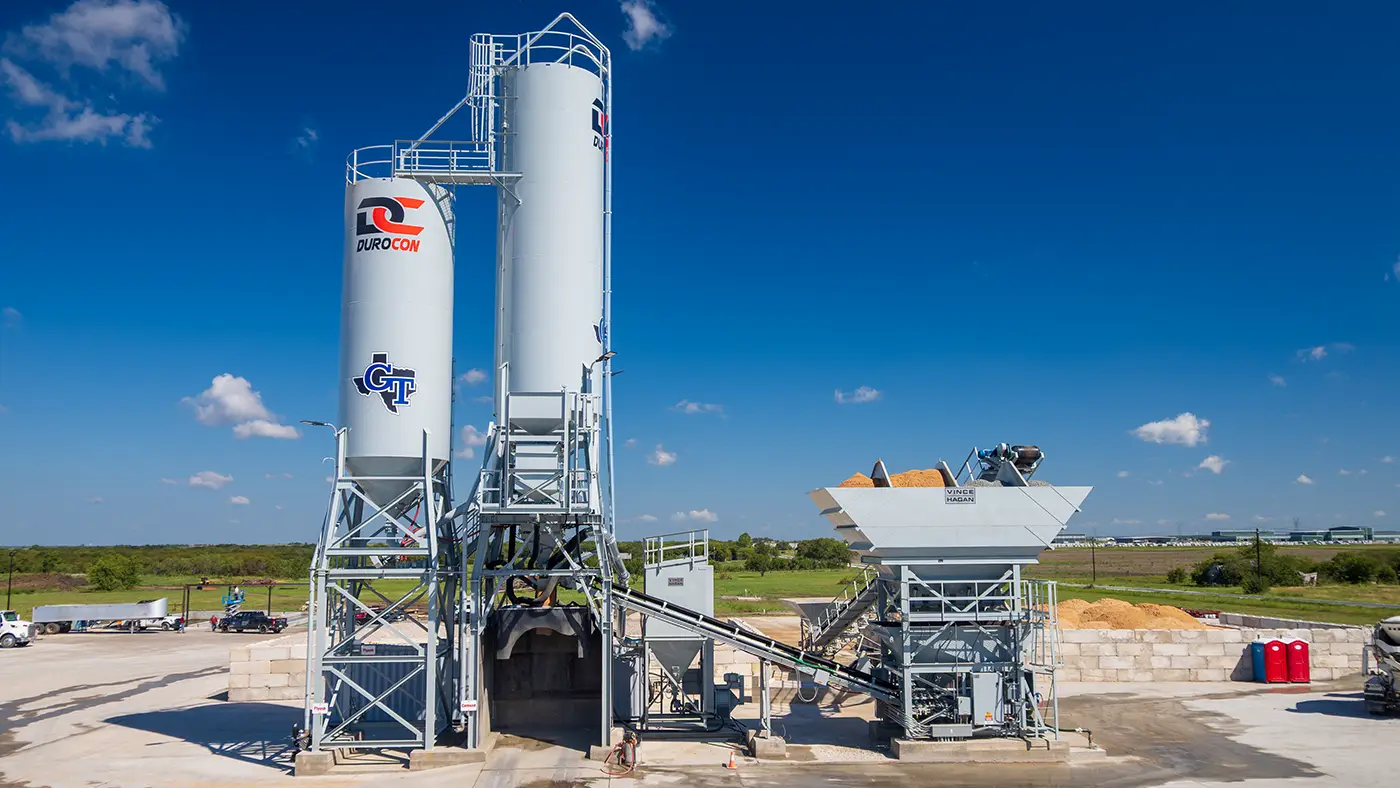

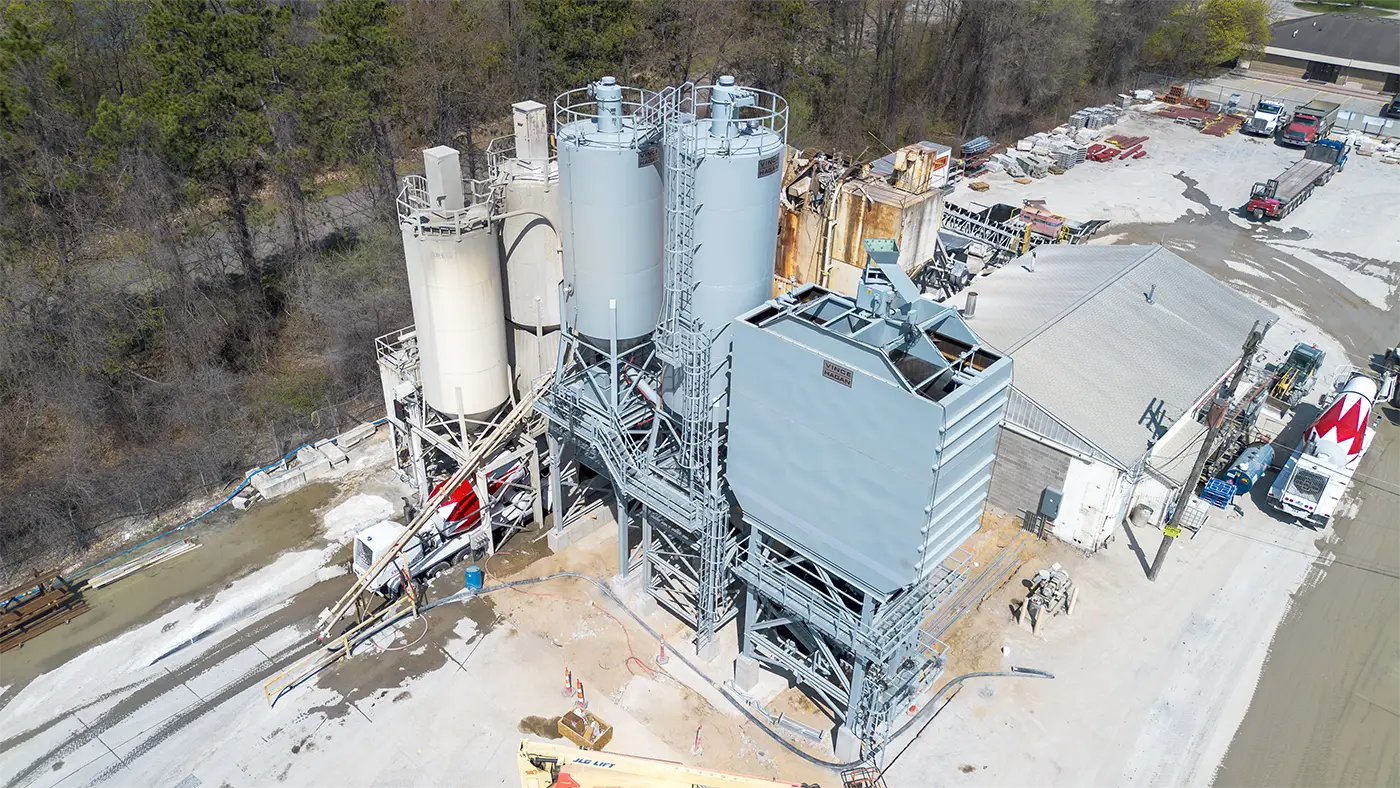

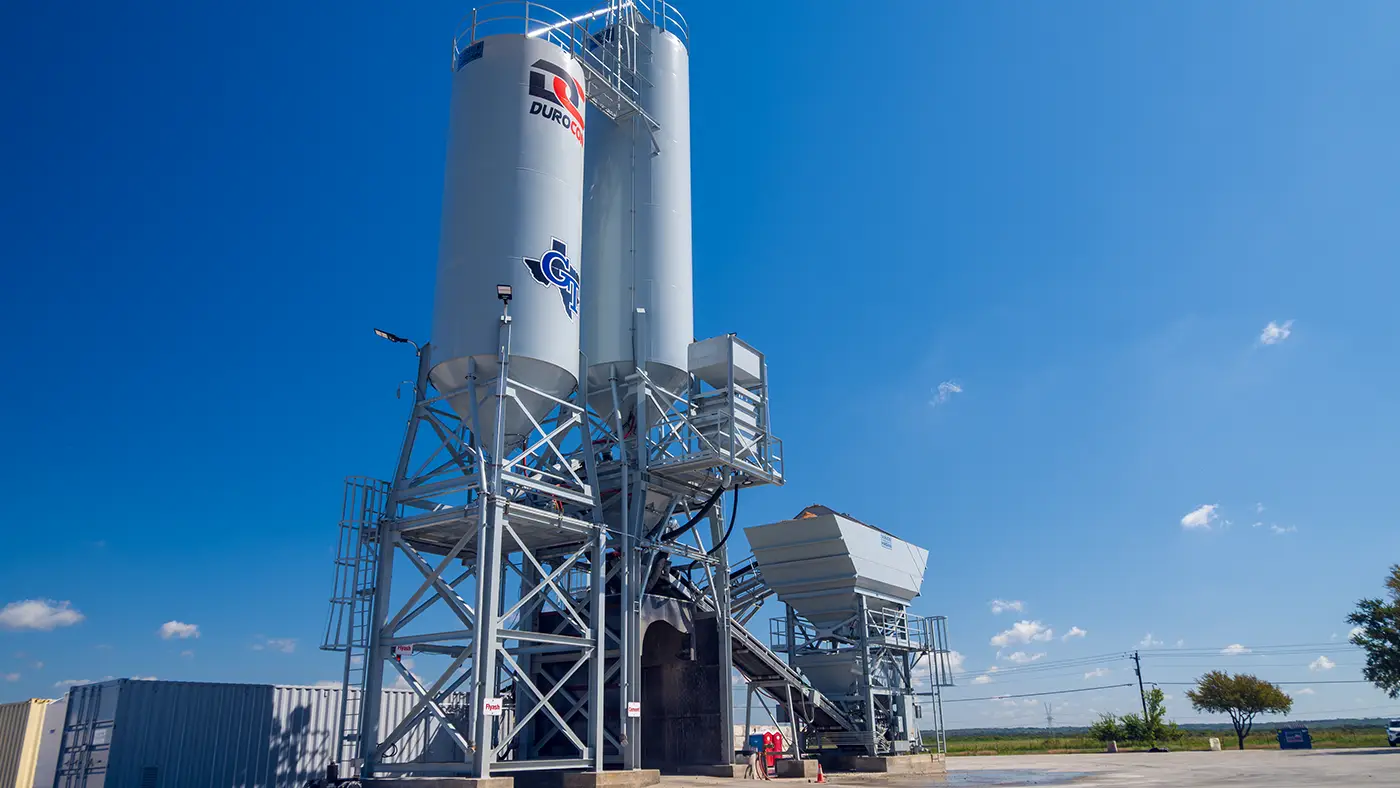

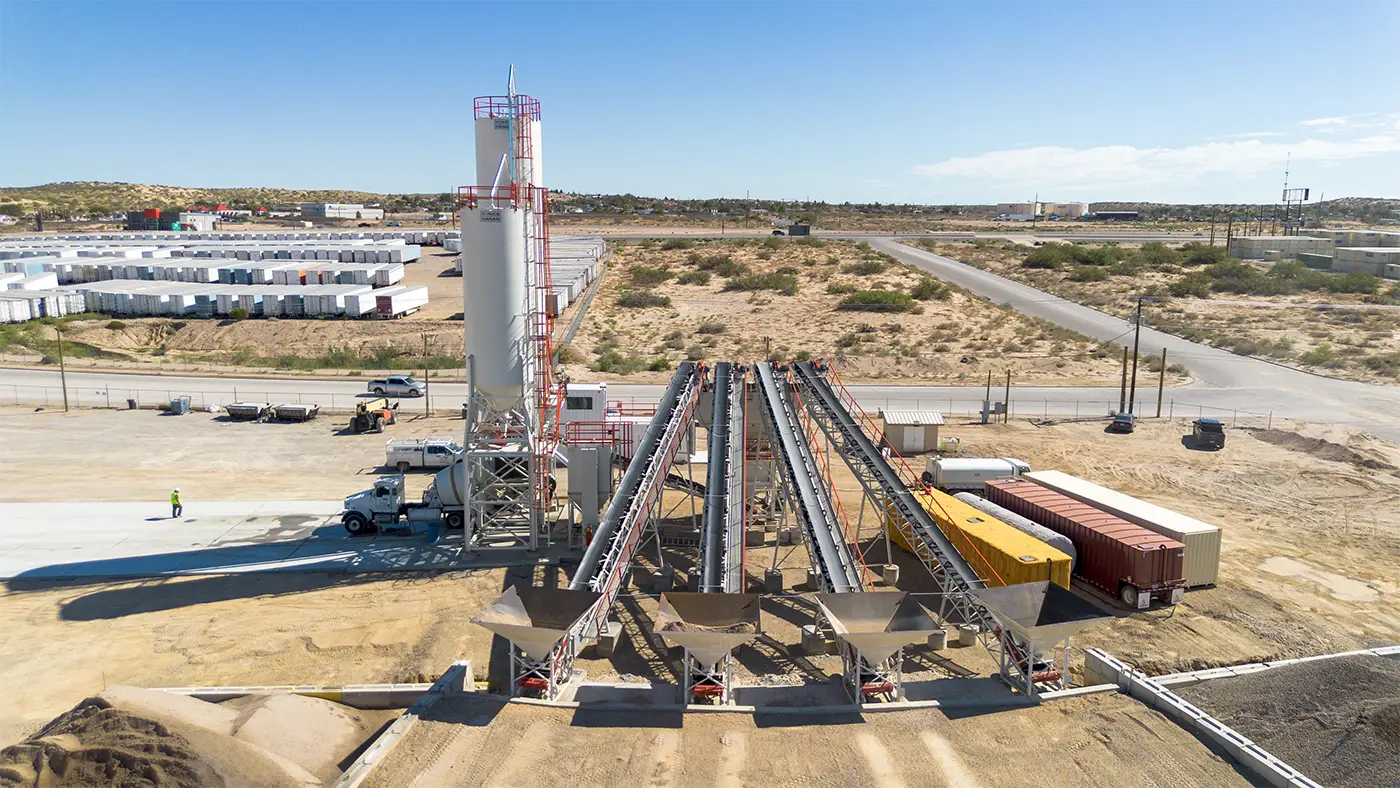

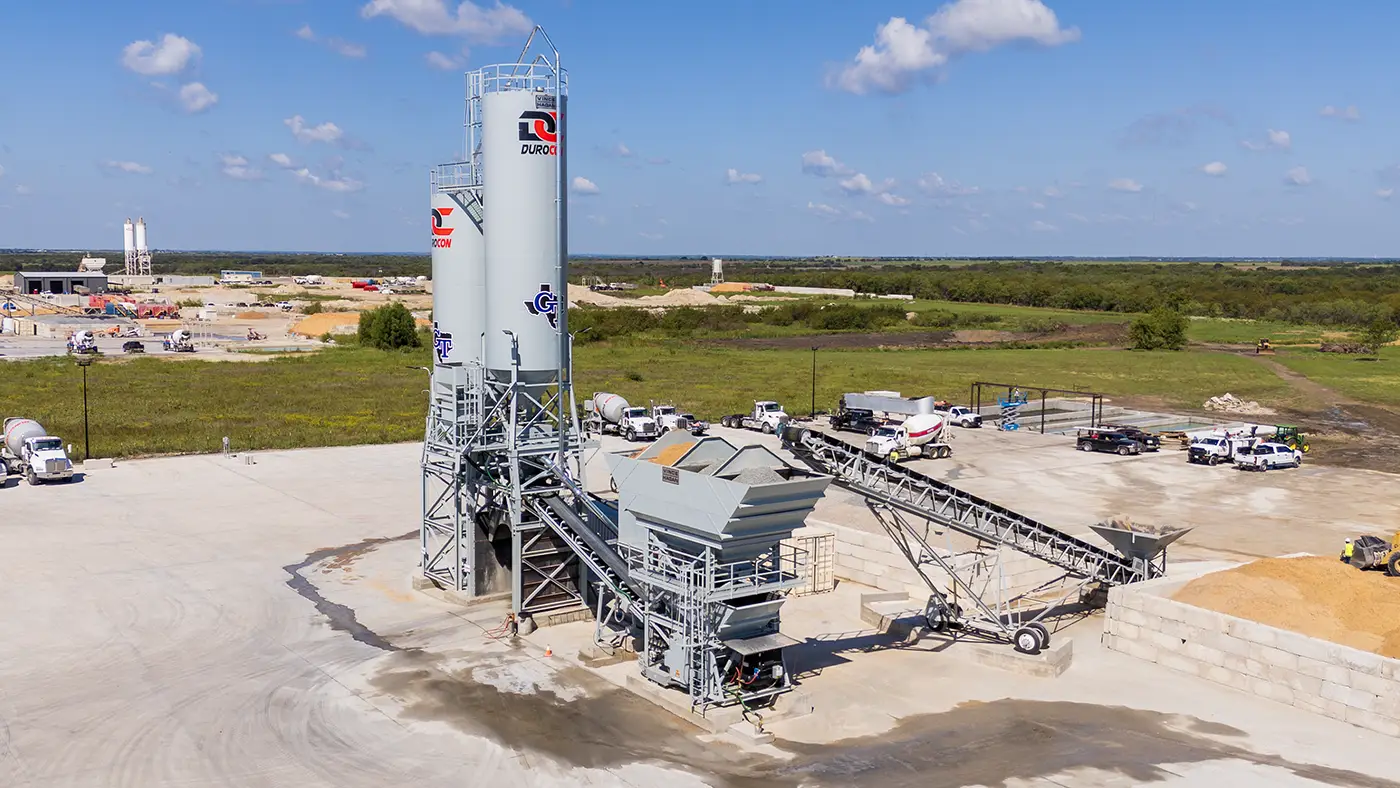

The Vince Hagan LPM (Low Profile Modular) stationary batch plant offers the opportunity to customize your plant layout according to your specific high-production needs. Its unique, modular design enables producers to combine large cementitious and aggregate storage capacity with production ranging from 100 to 400 cubic yards per hour. The LPM may be configured to accommodate dry, wet, and dual batching lanes.

The LPM plant is a cornerstone plant for producers across the nation. Many are a time-tested legacy for companies that are important to their community, proving the dependability and longevity of Vince Hagan plants.

Key Specs

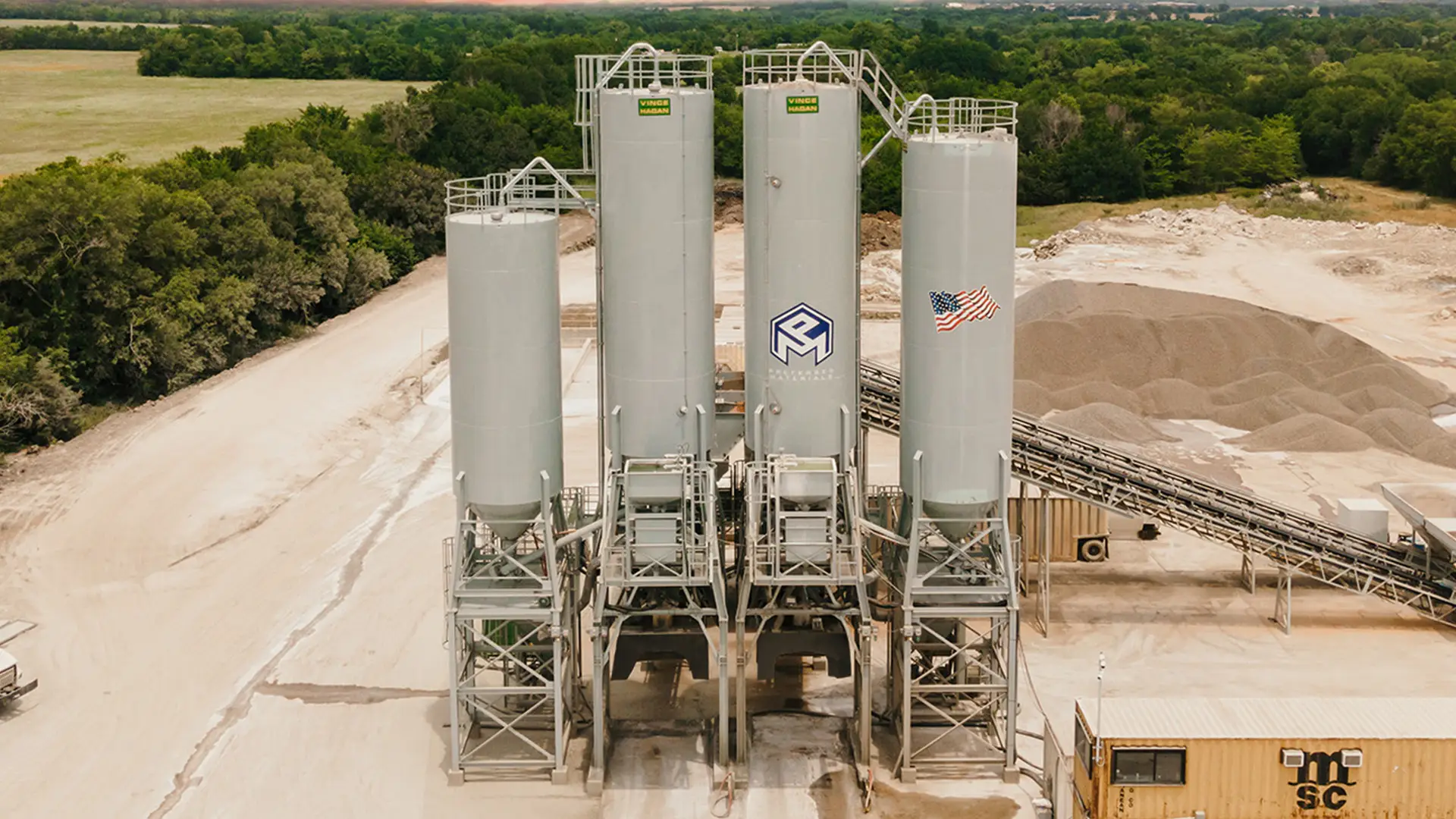

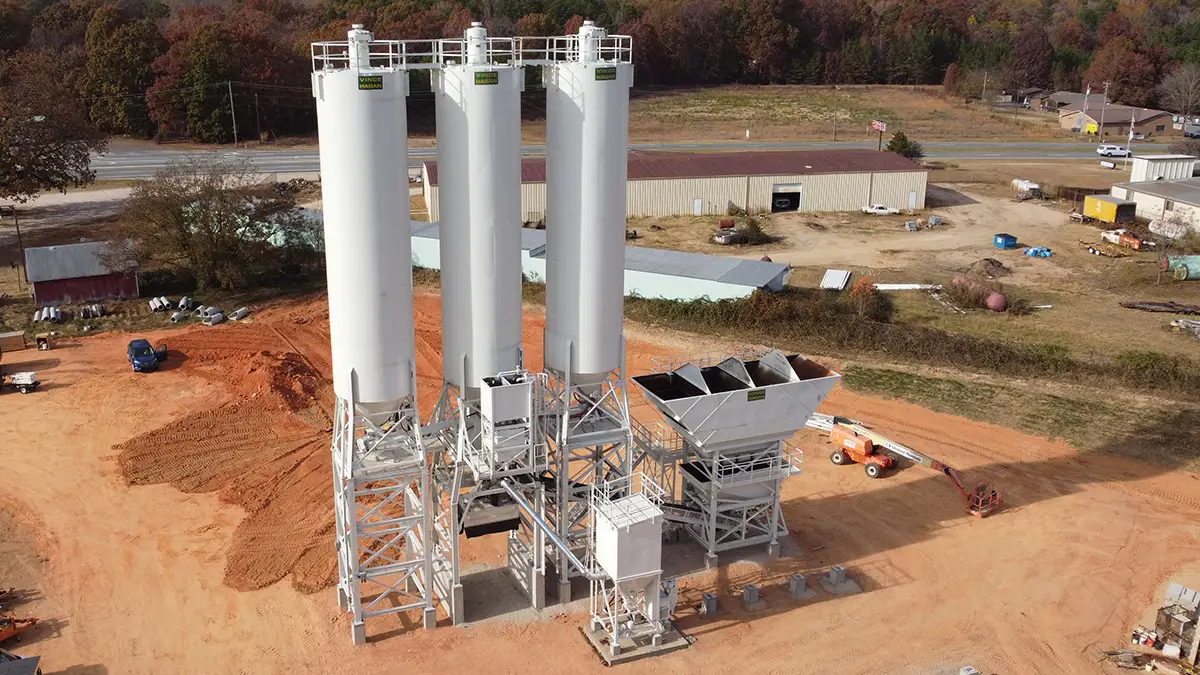

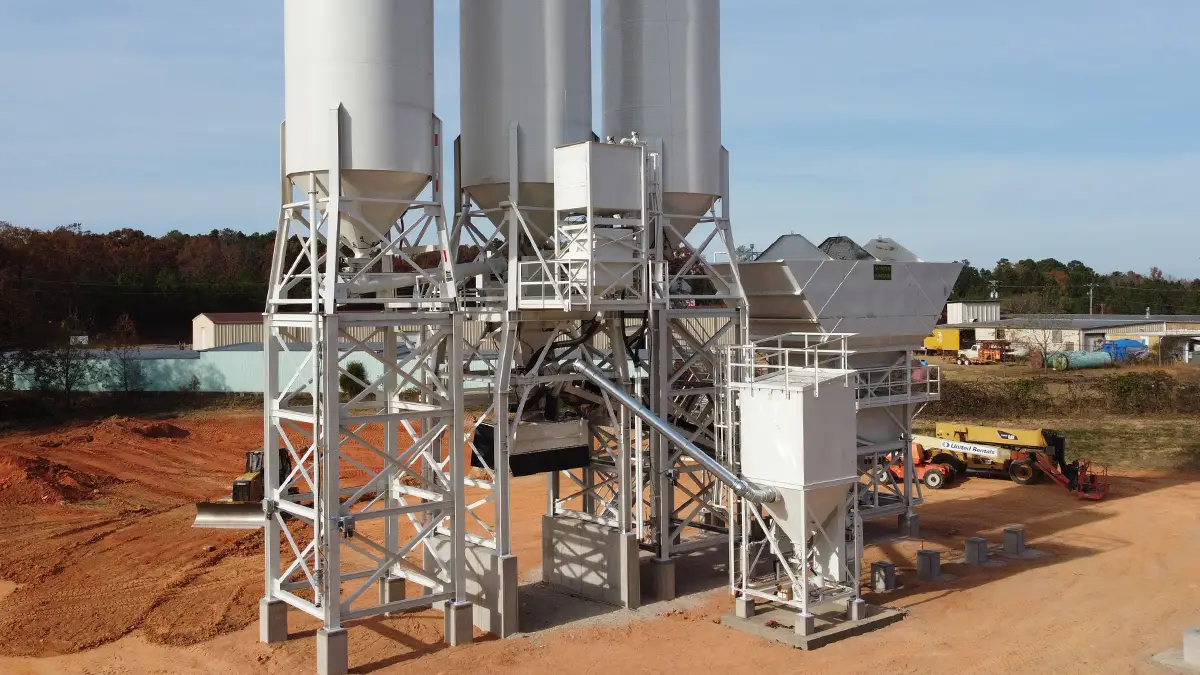

  • 200-1200 BBL overhead silo (can be split into two compartments 500 BBL and larger)

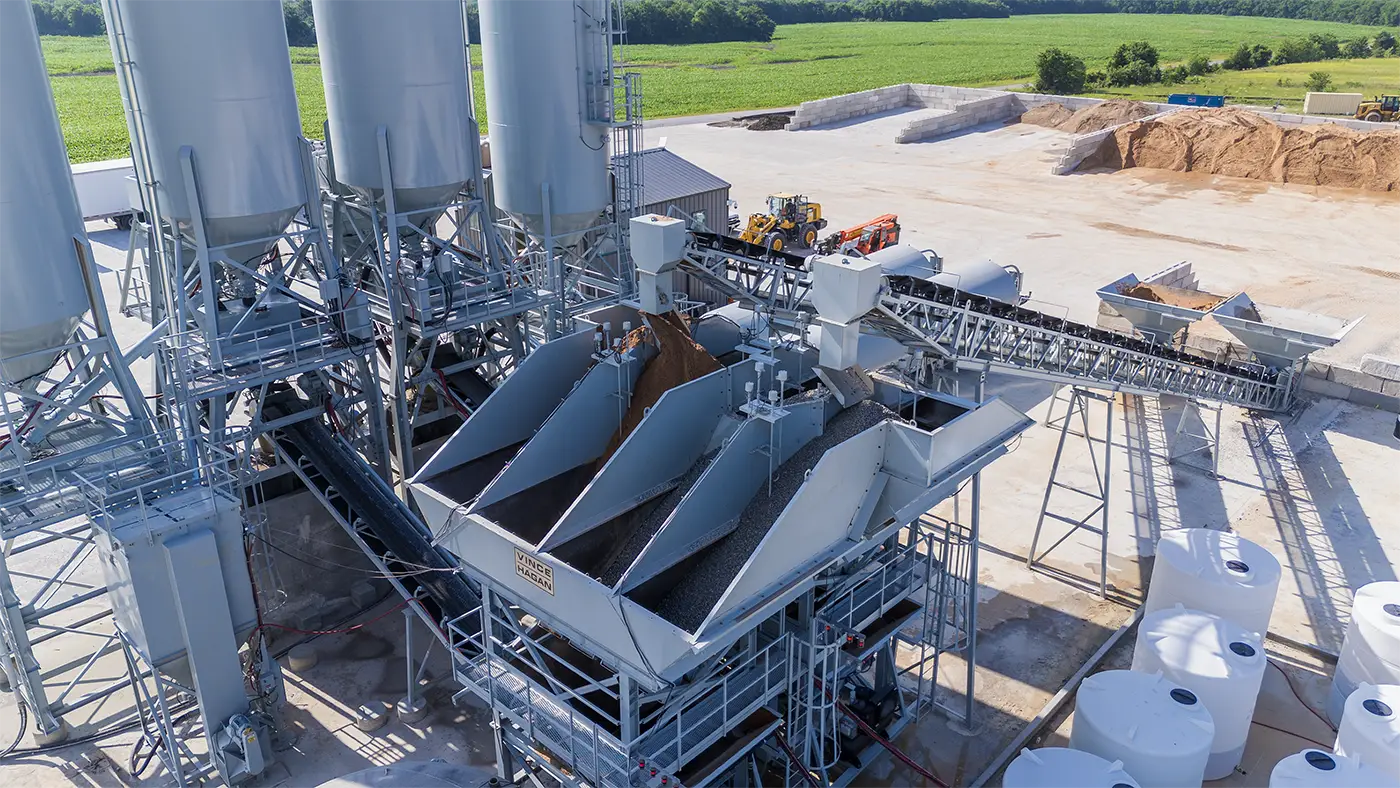

  • Up to 320 ton aggregate storage – Up to 8 compartments

  • Up to 48″ batch transfer belt

  • Structures available for 12′, 13′, & 14′ steel discharge clearance at loading point

  • Dual lane capability for Dry/Dry, Dry/Wet, Wet/Wet Batching operations

  • Pre-wired in EMT conduit to
    (NEC) National Electrical Code

  • Motor starter NEMA panel is ULC certified

Dual Alley Central Mix & Holding Hopper
